ULTRA KOCH EXERCISE

The ULTRA KOCH EXERCISE bed was born out of intense work between Dr. Michel Koch and the development team at GENIN MEDICAL. Patient comfort, versatility and the needs of practitioners were the main criteria for its design.

As stress echocardiography is increasingly prescribed, it is essential that the patient be able to do his examination in the best conditions. Installed in more than 50 health hospitals, our versatile echocardiography table is particularly appreciated for its versatility.

It makes it possible to optimize the ultrasound machine in an alone room and perform any type of examination: rest or stress ultrasound, ultrasound with dobutamine, transoephageal ultrasound, cervical Doppler, both on the child and on the obese 180 kg.

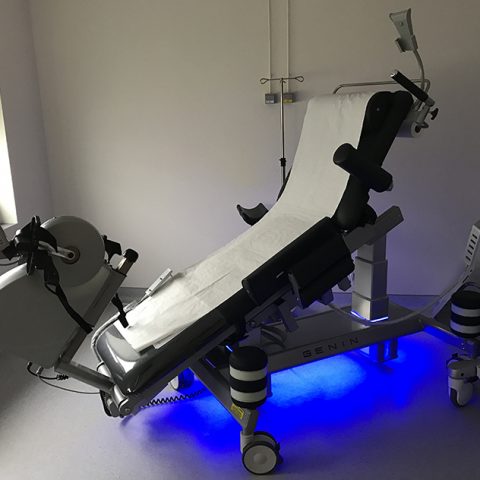

DESCRIPTION OF THE ECHOCARDIOGRAPHY COUCH

(click on a number for more information)

  1. 1
    TECHMED ergometer in stress position

    French manufacture, requires no recalibration, can be controlled by all ECG / effort systems on the market, silent operation.

  2. 2
    Access cutout

    Allows patient access to the optimal position and facilitates approach to the cardiologist working with the right hand.

  3. 3
    Retractable buttock support

    Advantageously replaces a saddle, the patient can pedal comfortably in the left lateral slope position, without anything between the legs.

  4. 4
    Fixed hip wedge

    Always in the right position according to the patient’s morphology, the fixed rollers appear when the table is in DLG.

  5. 5
    Neck hole (under the cushion)

    Under the adjustable head cushion is the neck hole allowing the head to be extended back to facilitate cervical Doppler.

  6. 6

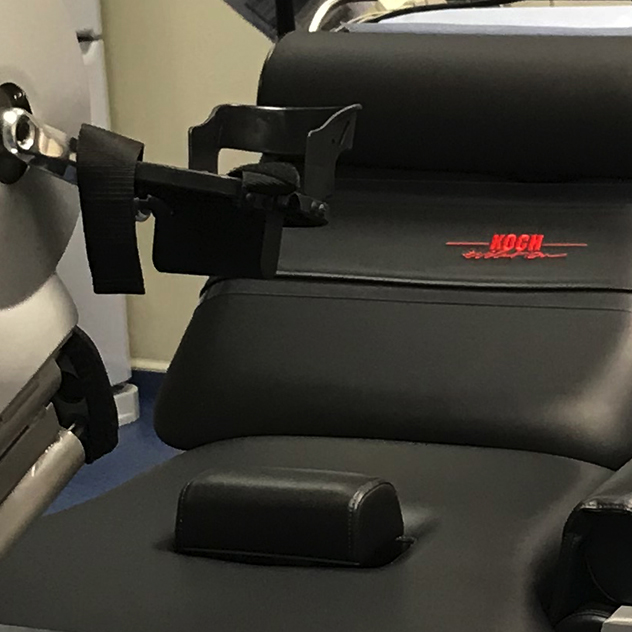

    Armpit wedging and grab handle

    Three systems allow, depending on the patient’s morphology, maintenance during exertion in the DLG position, while keeping an examination window for the cardiologist.

  7. 7
    Double lockable TENTE wheel

    The German-made castors allow easy movement of the table by one person, each caster supports 400 kg.

  8. 8
    Ambient LED lighting

    Programmable color mood lighting gives the exam room, which is often dark, a “zen” look, helping to de-stress the patient.

  9. 9
    Pedal with heel lock

    The pedals made especially for TechMed guarantee perfect foot support during exercise, while being quick to install and remove.

  10. 10
    LINAK cylinder

    The benchmark in terms of jacks, the five Danish-made jacks allow the table to be moved in all directions :

    • Height adjustment from 64 cm to over 1 m
    • Positioning in the windward position for the effort
    • Trendelenburg position in case of vagal discomfort
    • Backrest adjustment for optimum comfort and placement of the probe for ETOs
    • Left lateral position (DLG)
    • Electric adjustment of pedaling length

    All jacks are controlled by remote control.

Discover the video of the ULTRA KOCH EXERCISE

EN POSITION ”EFFORT``
CALAGE DES HANCHES
CALAGE FESSIER
ERGOMETRE ”TECHMED``
EN POSITION ”EFFORT”
EN POSITION ”REPOS``

Applications

  • CARDIOLOGY EXAMINATION BED
  • REST ECHOCARDIOGRAPHY
  • EFFORT ECHOCARDIOGRAPHY
  • ECHOCARDIOGRAPHY WITH DOBUTAMINE
  • TRANSOESOPHAGIAN ECHO
  • CERVICAL DOPPLER
certification européennne

Advantages

  • Versatility
  • Speed of installation and adjustments
  • Comfort for patient and practitioner
  • Suitable for pediatrics
  • Maximum patient weight during stress: 180 kg
  • Trendelenburg position: patient safety
  • Easy mobility
  • Connectivity to all ECG / effort systems
  • Quality of materials
  • 3 year warranty
  • French made
